Doppel-Druckübersetzer 50MN

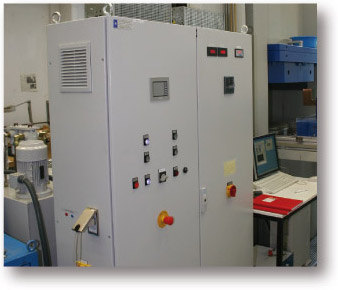

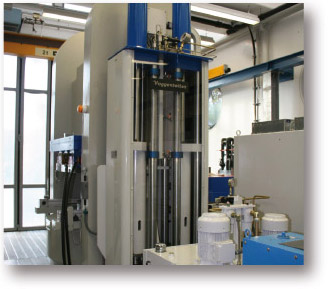

700 bar Dual Pressure Intensifier for 50MN press with automatic pressure control system.

This 50MN (5,000 tons) press, developed for basic scientific research, has been completely overhauled and technically improved by us. The plunger cylinder with a diameter of 900 mm showed coarse places where materials had welded together as a result of the movement due to inadequate material combinations.

The sealing elements were degraded. The machine had a total weight of 80 tons and a height of 4 metres and it was impossible to dismount it in the laboratory. It had to be transported outside and dismounted there.

Actions taken:
